What is Cbwfq?
Class-based weighted fair queueing (CBWFQ) extends the standard WFQ functionality to provide support for user-defined traffic classes. For CBWFQ, you define traffic classes based on match criteria including protocols, access control lists (ACLs), and input interfaces.
What is Llq QoS?
Low-latency queuing (LLQ) is a feature developed by Cisco to bring strict priority queuing (PQ) to class-based weighted fair queuing (CBWFQ). LLQ allows delay-sensitive data (such as voice) to be given preferential treatment over other traffic by letting the data to be dequeued and sent first.
What is FIFO Queueing strategy?
FIFO Queuing uses a single queue for the interface. Because there is only one queue, there is no need for classification to decide the queue into which the packet should be placed. Also there is no need for scheduling logic to pick which queue from which to take the next packet.
In which queuing mechanism all packets are treated equally?
First in First out i.e. FIFO is the most basic queuing mechanisms. It is simplest queuing mechanisms as in FIFO queuing there exist no classification because all packets are treated equally by placing them in a single class. Here Tail Drop policy is used in which packets are dropped when the output queue is full.
What is class based weighted fair queuing Cbwfq?
CBWFQ is a scheduling mechanism used to provide a minimum bandwidth guarantee to traffic classes during times of network congestion at an interface. Each of the CBWFQ queues is assigned a weight, and the packets are served from the queues based upon the weight of the queue.
How does a class based queue work?
Class-based queuing (CBQ) describes a system where network administrators assign a specific priority to each transmission or set of data packets, depending on what type of transmission it is. In class-based queuing, administrators create classes to prioritize what gets done most quickly.
What are the QoS models?
There are three main models for providing QoS services in a network: Best Effort. Integrated Services (IntServ). Differentiated Services (DiffServ).
What is expedited forwarding?
The expedited forwarding (EF) per-hop behavior assures that any traffic class with EF’s related DSCP is given highest priority and is not queued. Use the EF DSCP when assigning priority to customers or applications with a premium SLA. …
How does flow based Wfq Wfq differ from class based Wfq Cbwfq )?

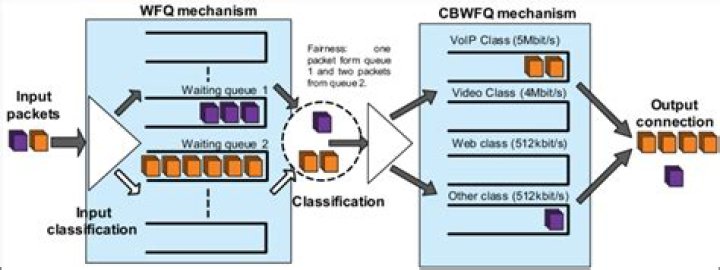

The difference between WFQ and CBWFQ is that CBWFQ differentiates traffic by class (e.g., voice, data, or video) while WFQ differentiates traffic by flow (e.g., source and destination). WFQ offers fair queuing that divides the available bandwidth across active flows based on weights.
What is the queuing strategy?
Queuing Strategy #1: Provide estimated wait times. This concept is simple. Known wait times feel shorter than unknown wait times. By providing customers with an estimate of how long they will be waiting in line, you are proactively managing their expectations.
What is priority queue and weighted queue?
Under strict priority queuing, the scheduler always gives precedence to higher priority queues. Weighted Fair queuing (WFQ) alleviates the problem of bandwidth starvation by servicing packets from each queue in a round robin manner, so that all queues are serviced fairly within a given time interval.
What is strict priority queuing?
With strict priority queuing, the switch services the eight queues in order of their priority. The highest priority queue is serviced until it is empty, and then the lower priority queues are serviced sequentially until they are empty. For example, queue 7 must be empty before the switch services queue 6.
