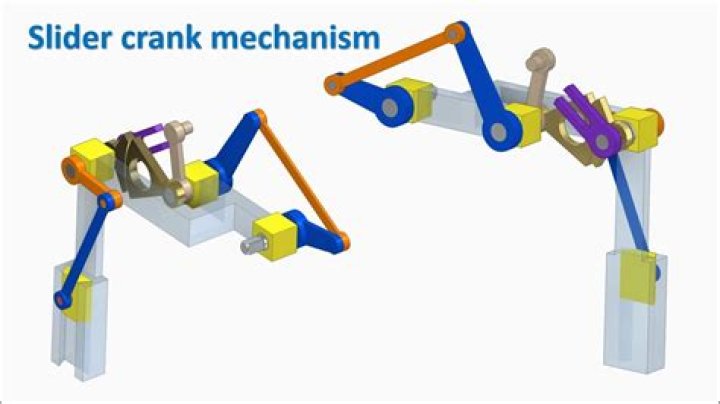

What is application of slider crank mechanism?
Combustion Engines: Slider-crank mechanism is used in piston cylinder assembly in combustion engines and converts reciprocating motion into circular motion and vice-versa. 3. Rotary Engines: Fixing the crank in the Slider-crank mechanism it can be used to form rotary engines.
How do you calculate sliding velocity?
Velocity of sliding = (ωp + ωg) x Path of approach = (20.944 + 5.236) x 17.33 = 453.68 mm/s. 7. The angular velocity of the pinion is 325 rpm and that of the gear is 155 rpm.
What is velocity of crank and slider?
The velocity of the piston at P relative to the cylinder G is termed the sliding velocity (&.),. The operation of this slider-crank system is such that the slider translates along the path PO and the motion of the connecting rod, PB, produces rotation of the crank OB.
Do maximum velocity and acceleration occur at the same crank angles?
By definition, the velocity maxima and minima occur at the acceleration zeros (crossings of the horizontal axis); these depend on rod length (l) and half stroke (r) and do not occur at crank angles (A) of ±90°.
Who invented the crank and slider?
The Arabic inventor, Al-Jazari (1136–1206), described a crank and connecting rod system in a rotating machine in two of his water-raising machines. His twin-cylinder pump incorporated the earliest known crankshaft, while his other machine incorporated the first known crank-slider mechanism.
How do you find the acceleration of a slider?
For a single slider crank mechanism , state the formulae to calculate by analytical method – Also state the meaning of each term.
- i) Velocity of slider:
- Vp = w.r [sinθ + sin2θ/2n ]
- ii) Acceleration of slider:
- fp = w2 r(cos θ + cos2θ/n)
- iii) Angular velocity of connecting rod.:
- wpc = w cos θ / ( n2 – sin2θ)1/2.
What is relative velocity method?
In order to determine the relative motion of the ends of a link, one of the ends is assumed to be moving relative to the other end. Therefore, the direction of relative velocity of a point w.r.t any other point on a link is always along perpendicular to the straight line joining the two points.
What are the two most common uses of a slider-crank mechanism?
The slider-crank mechanism is frequently utilized in undergraduate engineering courses to investigate machine kinematics and resulting dynamic forces.
Do sliders count as links?
A link connected to fixed line (generally known as ground) by a prismatic joint is called a slider. Sliders are sometimes considered to be cranks that have a hinged pivot at an extremely long distance away perpendicular to the travel of the slider. The link that connects two cranks is called a floating link or coupler.
